Side Scuttle Welded Type
- Standard: ISO, JIS
- Material: Aluminium alloy or Brass & Steel
- Glass: Toughened, Double glazed, Laminated, etc
Dimension Table (mm)
- Normal Size D: 200 / 250 / 300 / 350 / 400 / 450
- D1 (wall cut size): 250 / 305 / 360 / 410 / 460 / 510

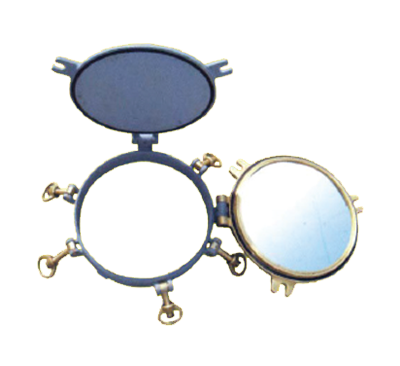

Hinge Side Scuttle
Fixed Side Scuttle
Side Scuttle Bolted Type
- Standard: ISO, JIS
- Material: Aluminium alloy or Brass & Steel
- Glass: Toughened, Double glazed, Laminated, etc
Dimension Table (mm)
- Normal Size D: 200 / 250 / 300 / 350 / 400 / 450
- D1 (wall cut size): 250 / 305 / 360 / 410 / 460 / 510
- D2: 350 / 400 / 450 / 500 / 550 / 600 **Only for Hinge Type

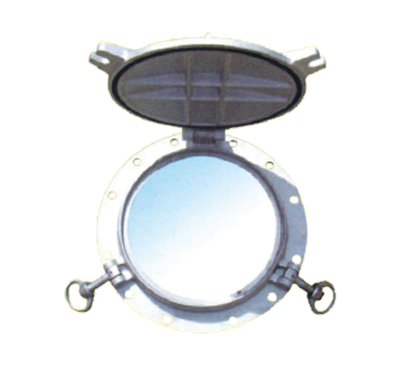

Fixed Side Scuttle

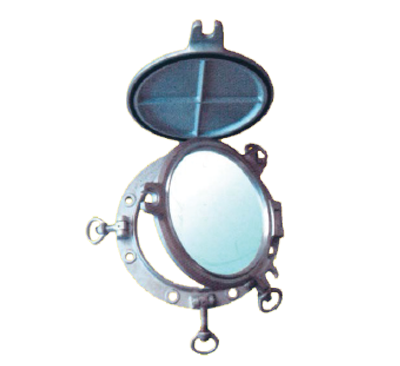

Hinge Side Scuttle
